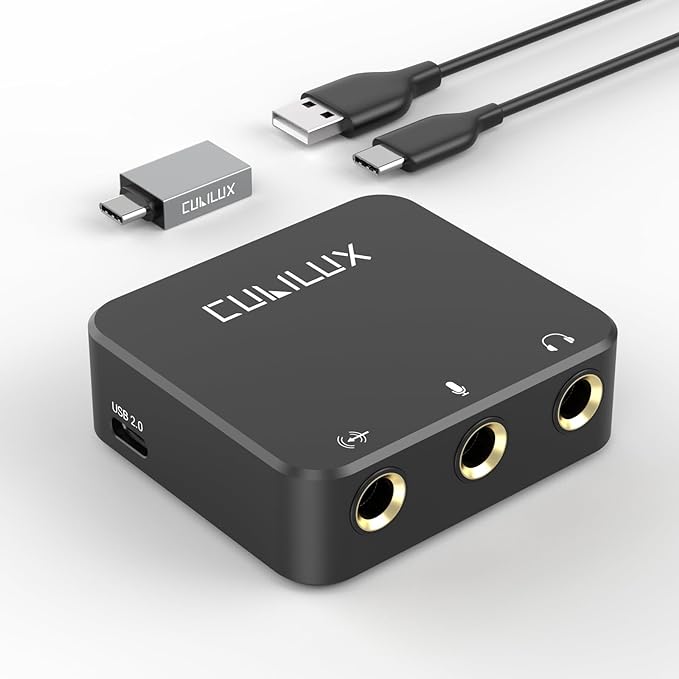

HLMS-C5 USB to 6.35mm Sound Card

HLMS-C5 USB to 6.35mm Sound Card

Regular price $26.09
Regular price Sale price $26.09
Sale Sold out

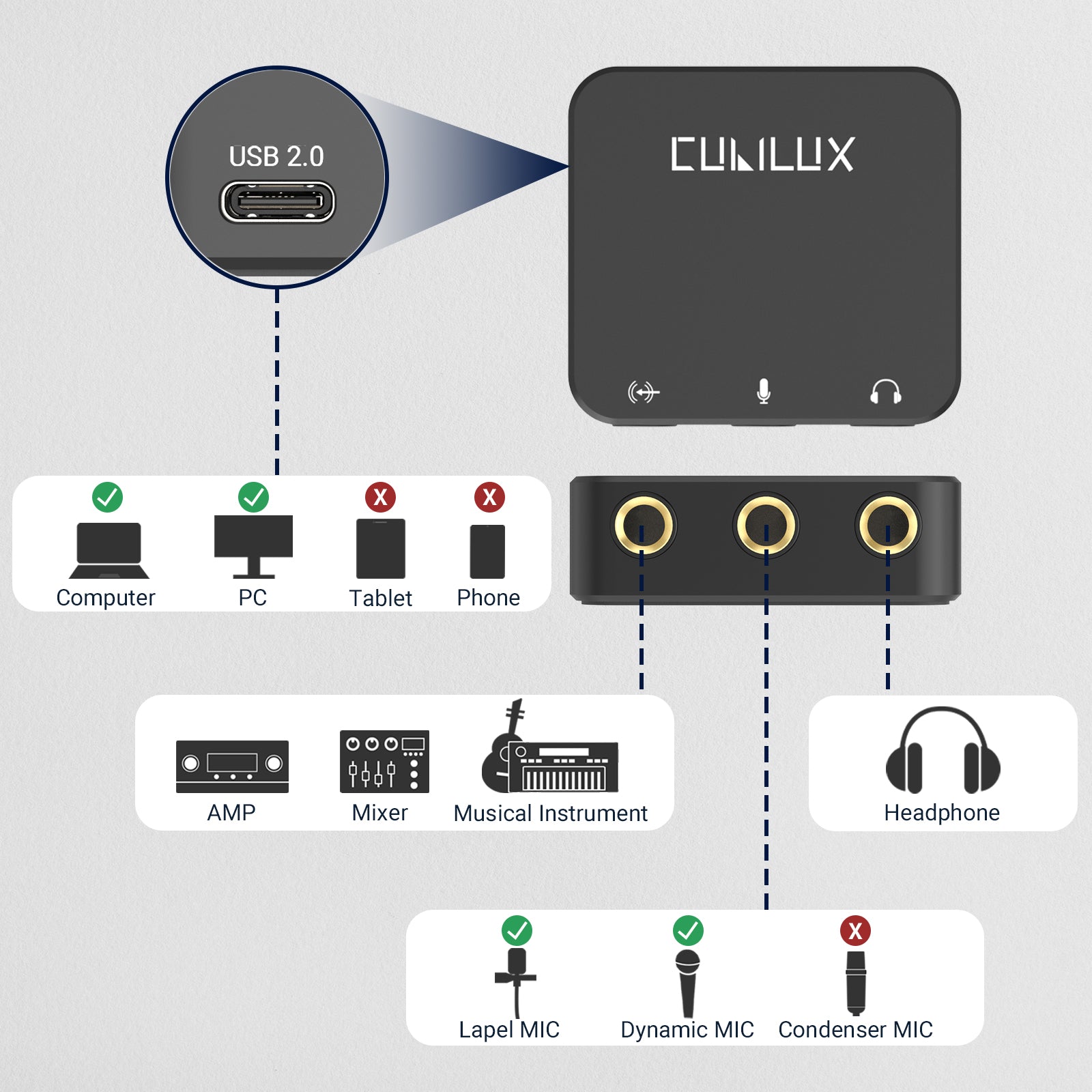

  • [3-In-1 1/4-In Audio HUB] - Cubilux HLMS-C5 turns the USB port into a stereo line-in jack, a mono MIC jack, and a headphone jack, enabling an efficient setup for podcasting, live streaming, vlogging, instrumental performances, music production, etc.

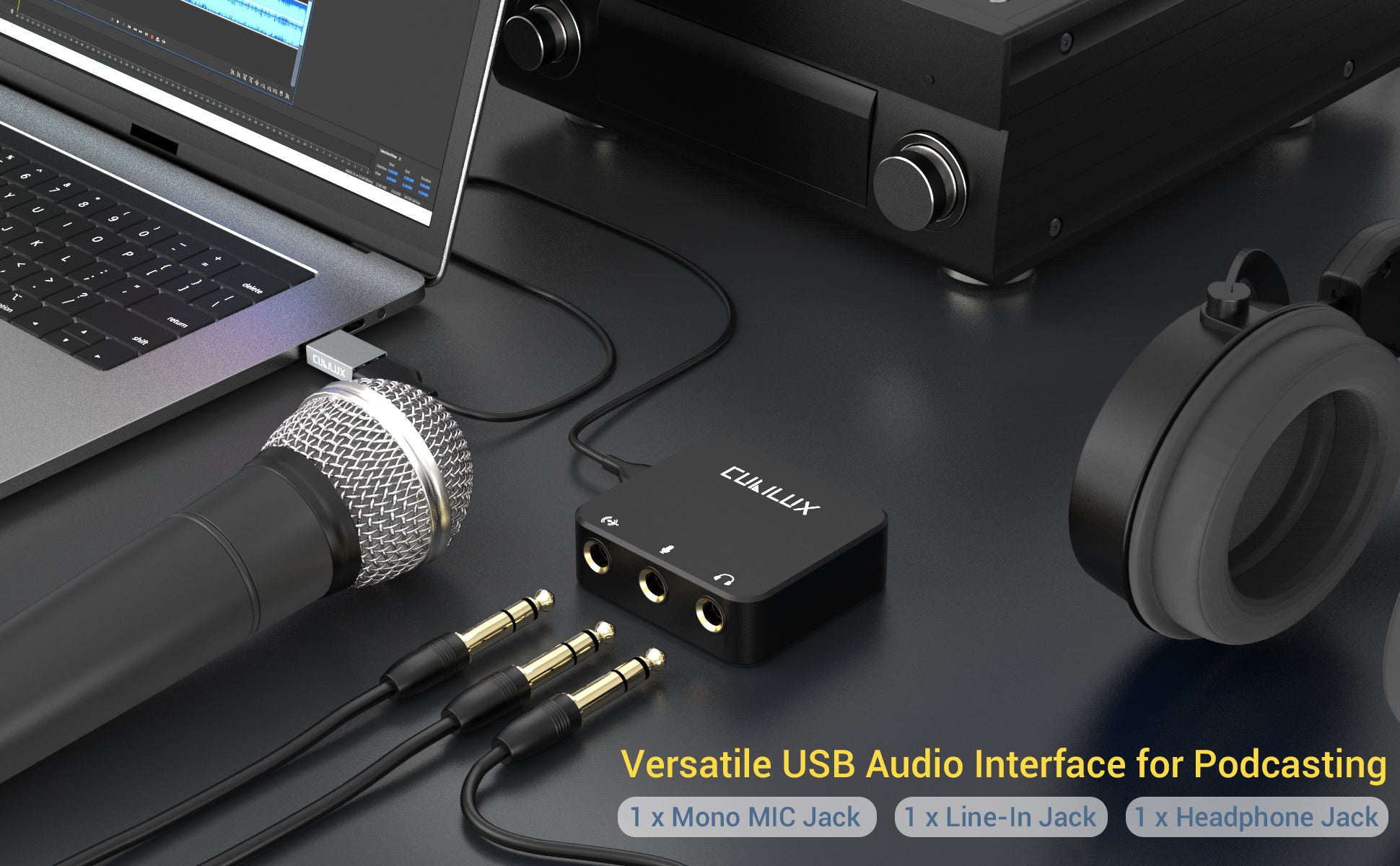

  • [Versatile Connectivity] – The line-in jack allows you to record music demos from mixer or AMPs or simply connect instruments like guitars or keyboards; The MONO MIC jack supports powerless microphones; and the headphone jack enables software monitoring at ease. Whether you're recording or practicing, the Cubilux HLMS-C5 offers the flexibility you need.

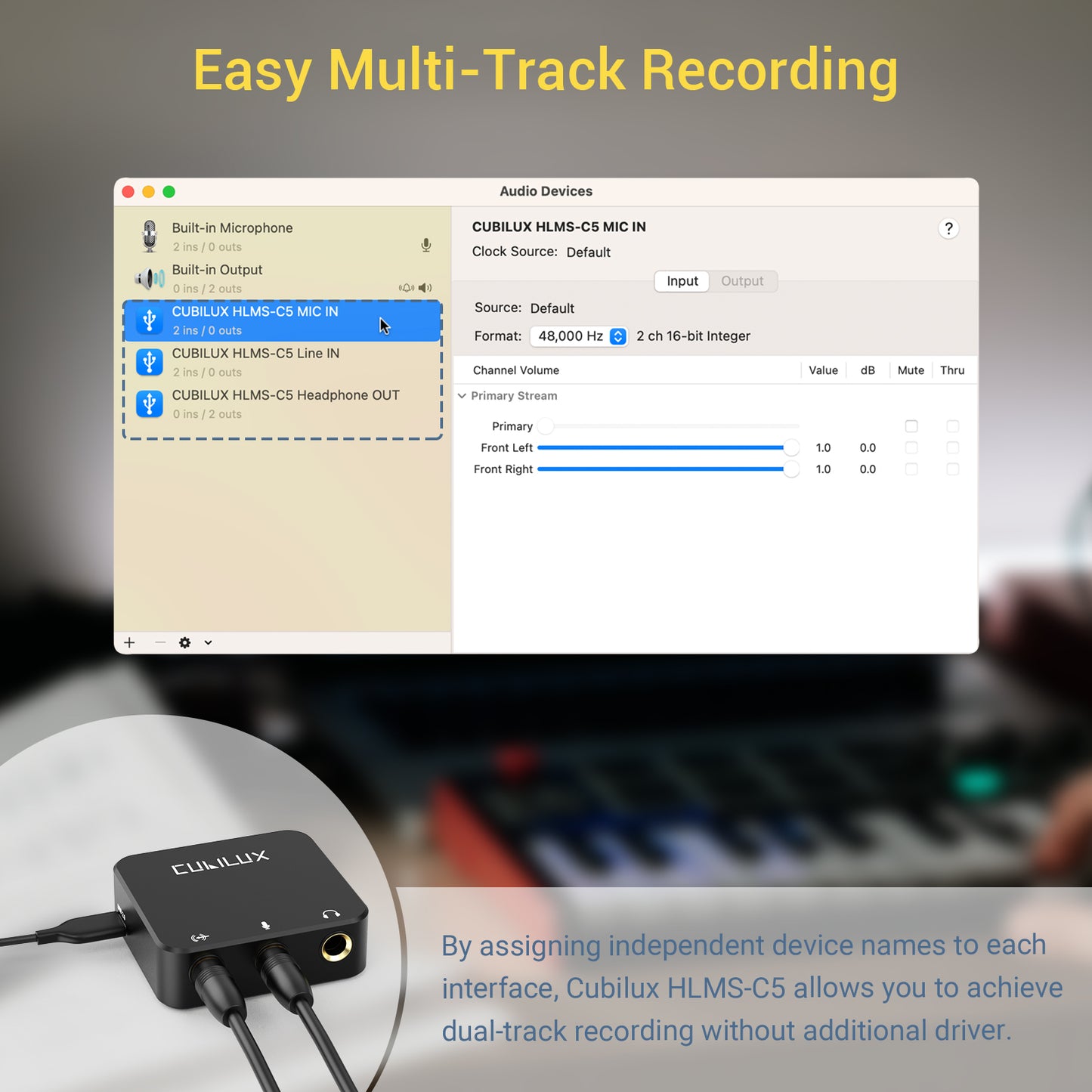

  • [Dual-Track Recording] – Cubilux HLMS-C5 simplifies the recording process by splitting connected devices into 2 separate channels for easy blending or individual recording.
  • [Powerless Portable Design] - No need for an external power source. The Cubilux HLMS-C5's compact and portable design is perfect for on-the-go recording, providing the flexibility to capture inspiration wherever it strikes.
  • [Compatible with Computers & Laptops] - The Cubilux HLMS-C5 is compatible with computers and laptops with USB Type C or Thunderbolt 4/3 ports. Please note that it does not support phones or tablets.

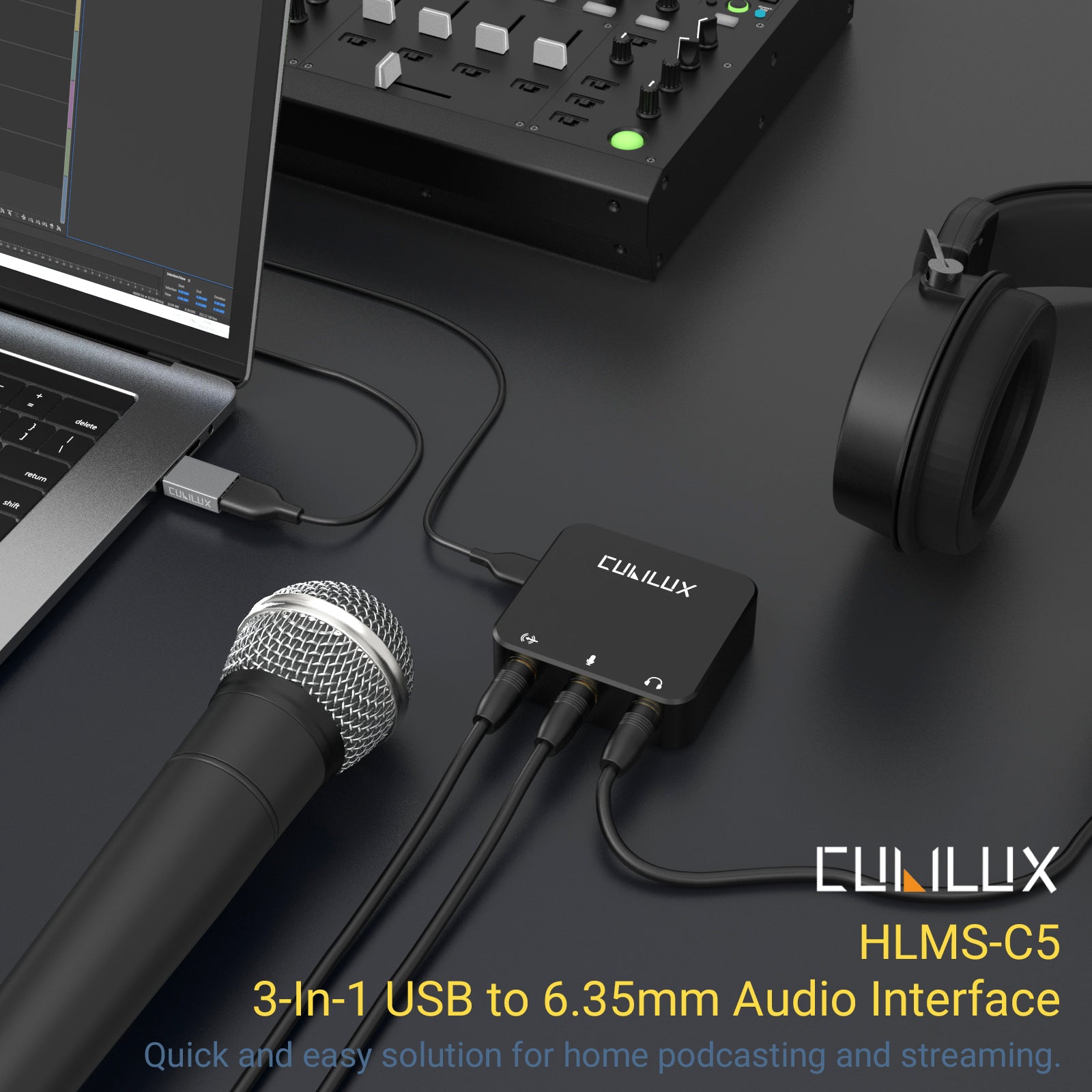

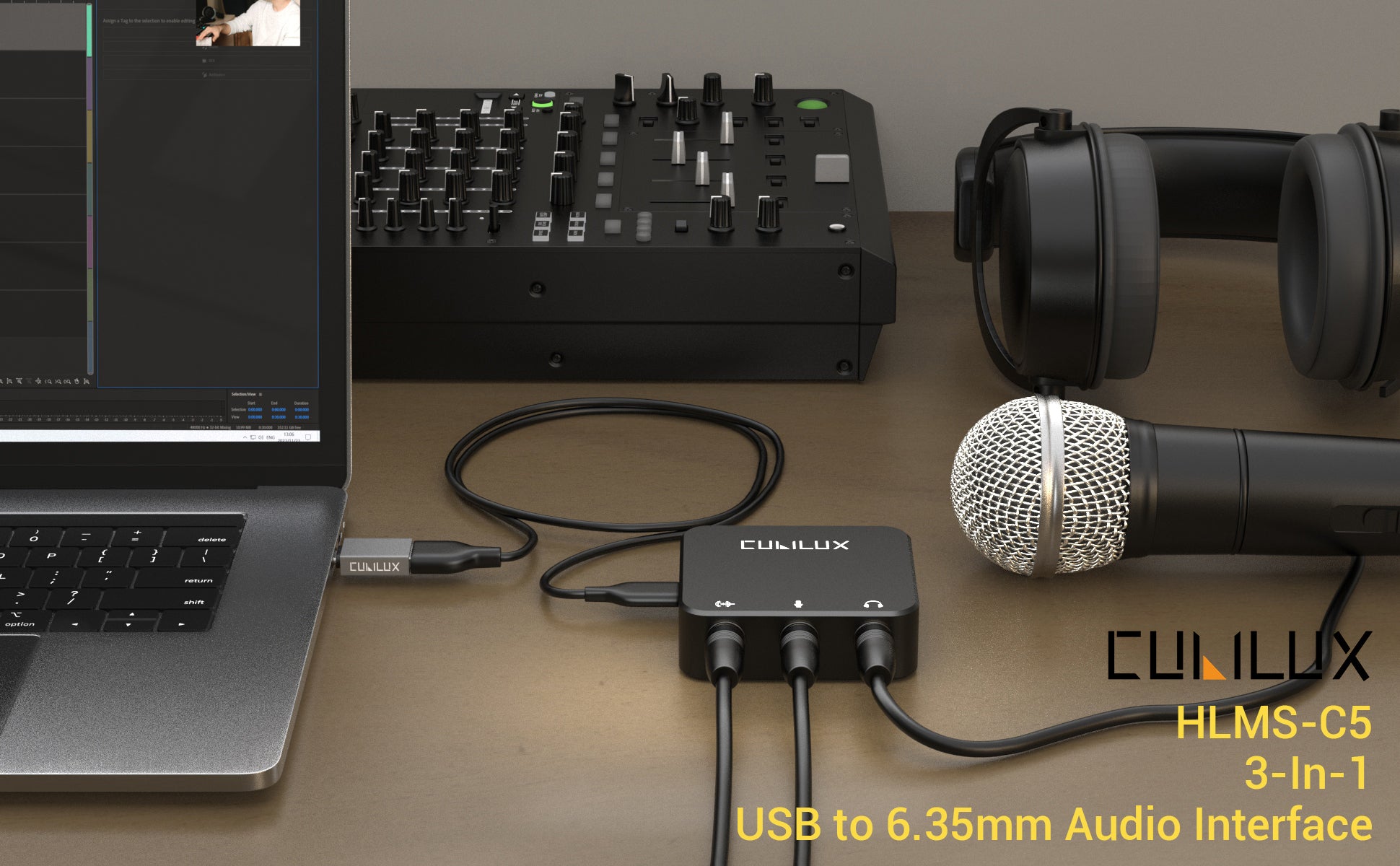

Cubilux HLMS-C5 USB to 6.35mm Audio Interface

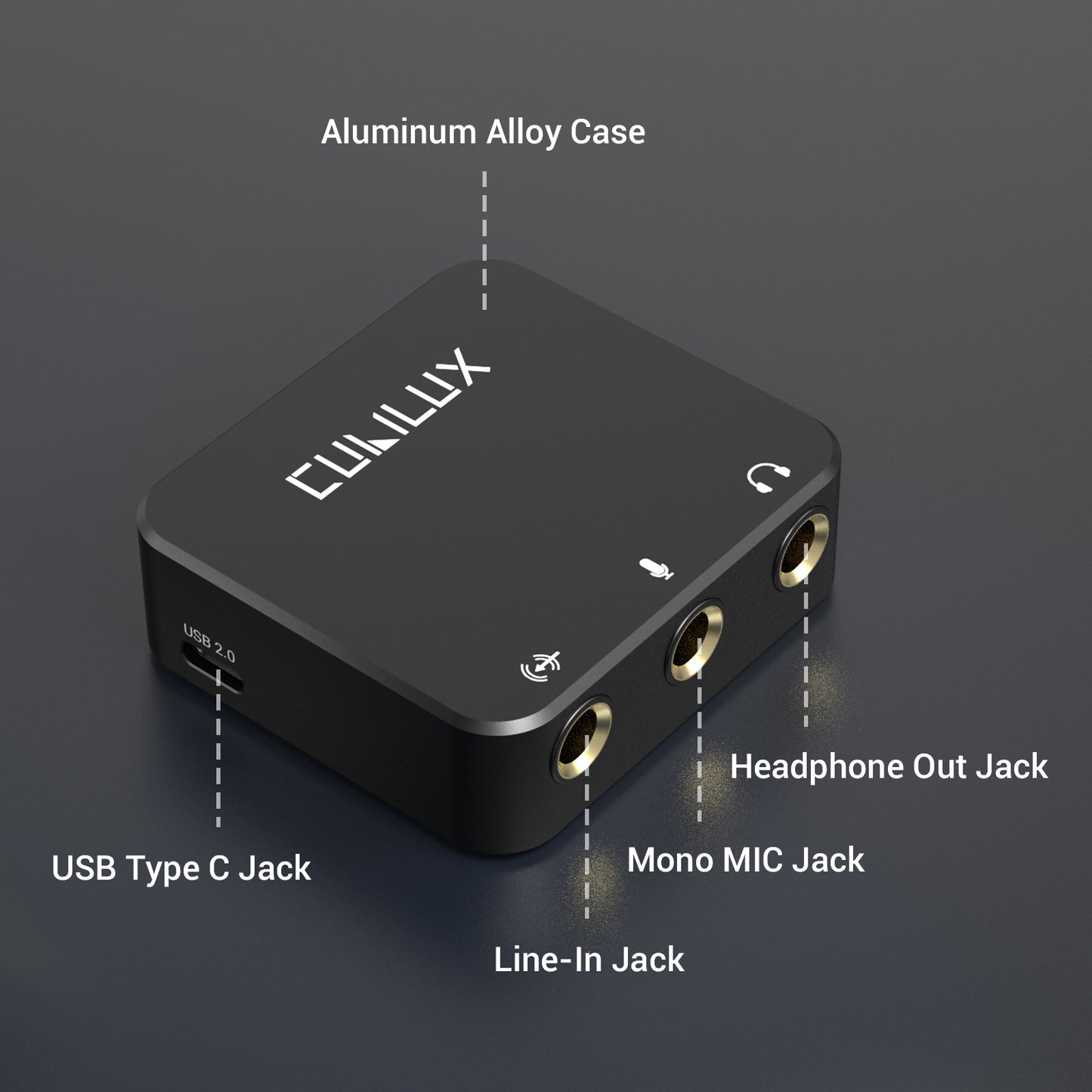

Cubilux HLMS-C5 seamlessly turns your USB port into a 3-in-1 audio interface. Featuring a 6.35mm stereo line-in jack, a 6.35mm mono MIC jack, and a 6.35mm headphone jack, Cubilux HLMS-C5 USB Audio HUB offers the must-need connectivity for quick and easy recording, streaming and podcasting.

Cubilux CB5 USB to 3.5mm Audio Interface empowers musicians, podcasters, or content creators to achieve studio-quality sound without the complexity.


  • Compatibility: Windows/MacOS with most recording software

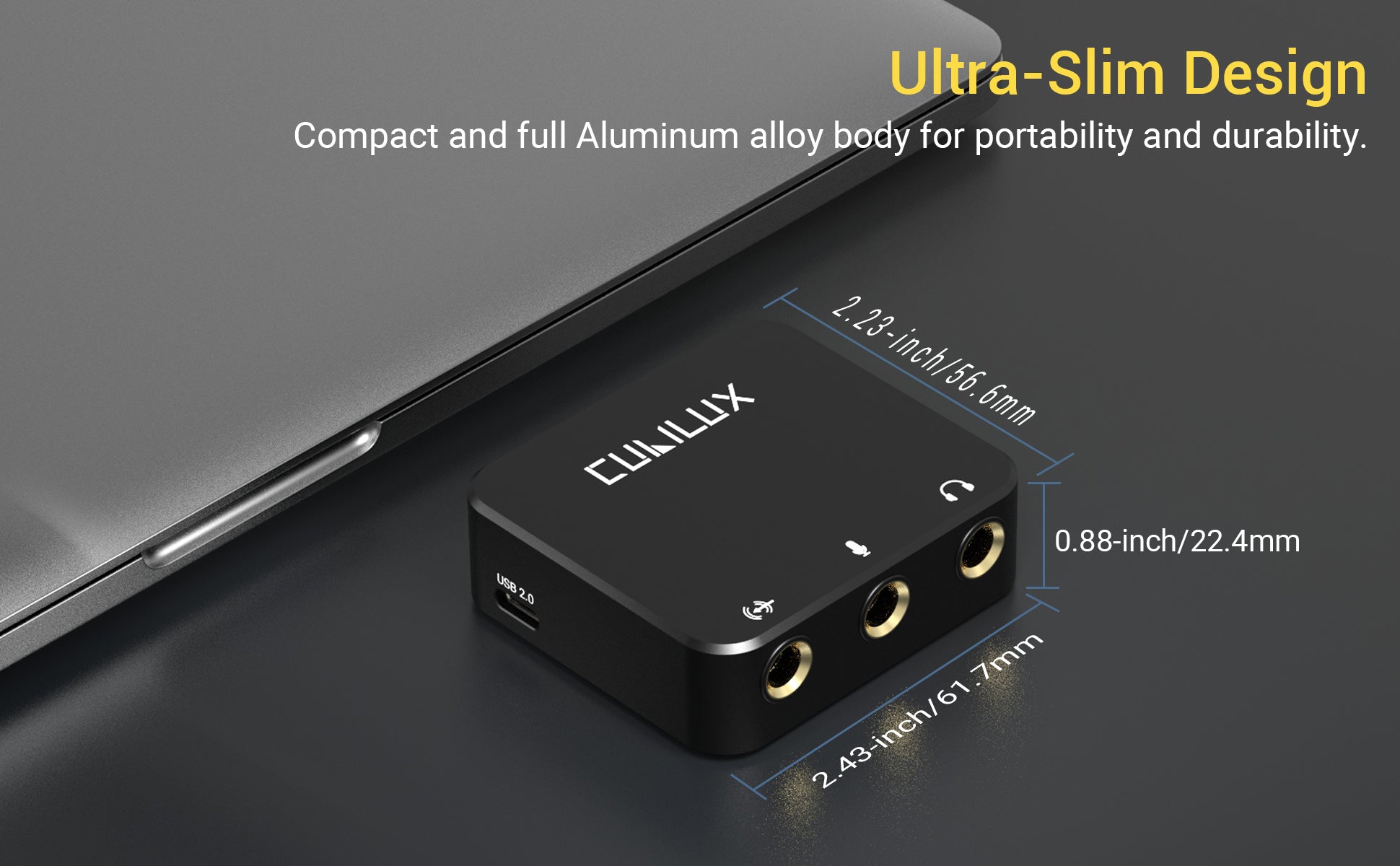

  • Dimensions: 62mm x 57mm x 22mm/2.4 in x 2.2 in x 0.9 in
  • Weight: 96g/0.2 lb
  • USB Port: USB C 2.0
  • Line IN: 6.35mm(1/4") TRS
  • Microphone Input: 6.35mm(1/4")TRS/TS*
  • Headphone Output: 6.35mm(1/4")TRS
  • Power Supply: USB 5V 100mA

Headphone OUT:

  • Sampling Rate: 44.1KHz~96KHz,16/24-bit
  • Headphone Impedance: TYP. 32 Ohm
  • THD+N: <=0.01%@1KHz
  • Full-Scale Output Level: 500mV RMS

Line IN:

  • Sampling Rate: 48KHz,16/24-bit
  • THD+N: <=0.01%@1KHz

MIC IN (Mono):

  • Sampling Rate: 44.1/48KHz,16-bit
  • THD+N: <=0.03%@1KHz
