AM-K4 6.35mm Mini Audio Mixer

AM-K4 6.35mm Mini Audio Mixer

Regular price $42.99
Regular price Sale price $42.99
Sale Sold out


  • [4-In 1-Out 6.35mm Mixer]-Cubilux Quarter Inch Mini AUX Mixer offers 4-way of stereo/mono inputs that let you connect guitar, bass, keyboard, drum, or introduce music from Amplifier or other source devices for monitor, composition, instrument practice or performance, multitrack recording etc.
  • [Support Stereo & Mono Signal]-Cubilux 6.35mm Mini Mixer allows you to mix Stereo (Both left and right channels) and Mono (Left channel ONLY) audio signal simultaneously. The maximum input signal level is 10Vrms.
  • [Built-In HiFi Analog Amplifier]-Cubilux 1/4-inch Mixer is integrated with an analog HiFi AMP to amplify audio stream for superior sound quality. With the AMP, the mixer is powerful enough to drive premium headphones up to 600 ohm.
  • [USB C 5V Power Supply]-The audio mixer features a USB Type C port for power supply, it’s convenient to power the device with smartphone charger. Please note that the mixer comes with a USB A to USB C charging cord and requires minimal 5V 1A power adapter (NOT included) for power supply.
  • [NOT for Microphone Signal]-Please note that this mixer is ONLY for audio line-in and does NOT support any kind of microphone input.

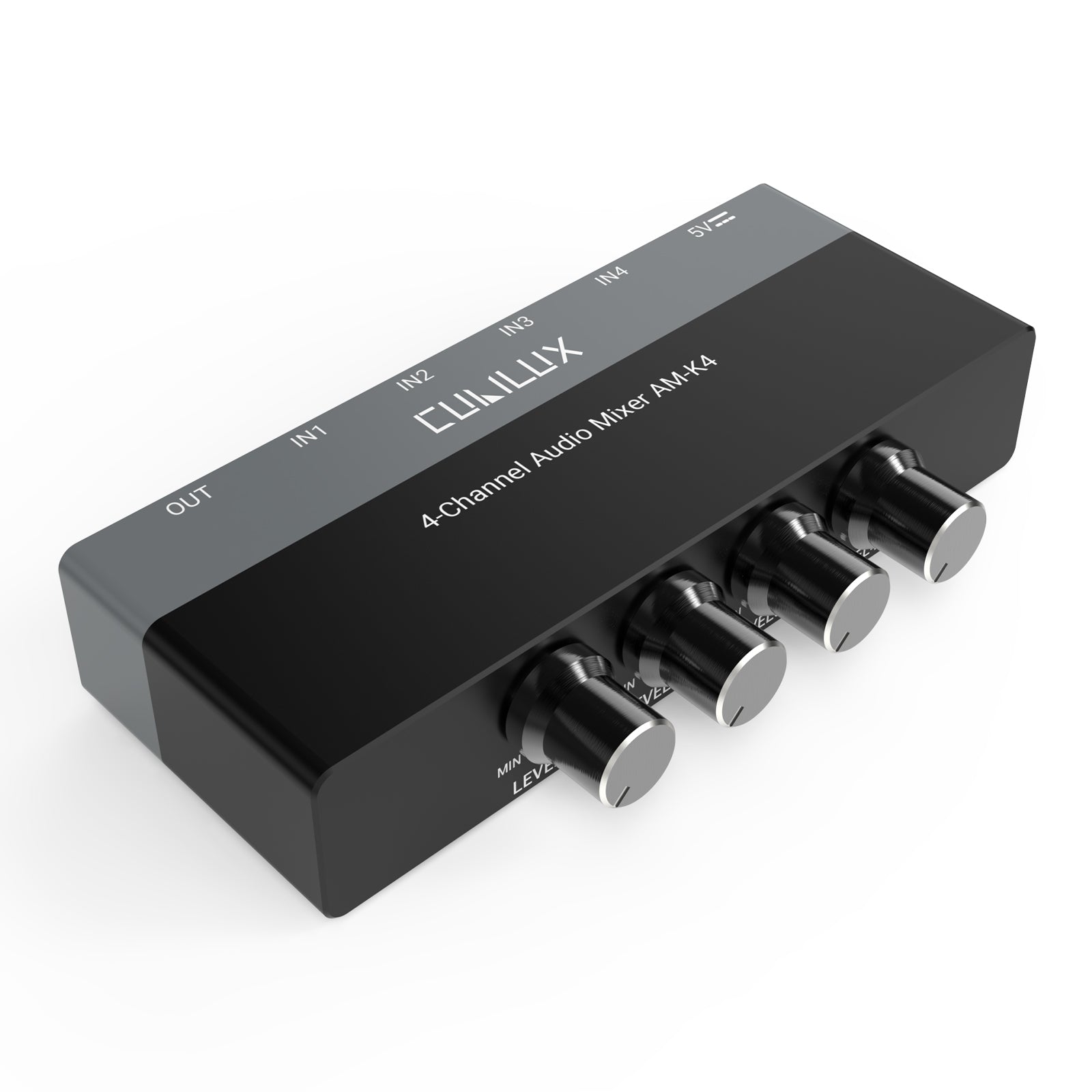

Cubilux AM-K4 Mini Audio Mixer

The advantages that distinguish Cubilux AM-K4 Audio Mixer are the built-in HiFi AMP and USB C Power Port.

With the HiFi Analog AMP, Cubilux Mixer could mix and amplify up to 4 channels of both stereo and mono audio sources at the same time, and drive maximum 600ohm impedance headphones and deliver ultra-clean sound without distortion and noise.

The Mixer could be easily powered by a cellphone charger (Min. 5V 1A, Not Included) and USB C charging cord (Included).

  • Support 4-Channel Line-In Audio Input
  • Support Simultaneously Input of Stereo and Mono Signal
  • Built-In HiFi Analog AMP for Optimal Audio Performance
  • Ultra-Compatible USB C Powered
  • Independent Volume Control Knob
  • Premium Aluminum Alloy Body

Please note

  • This mixer does NOT support microphone input

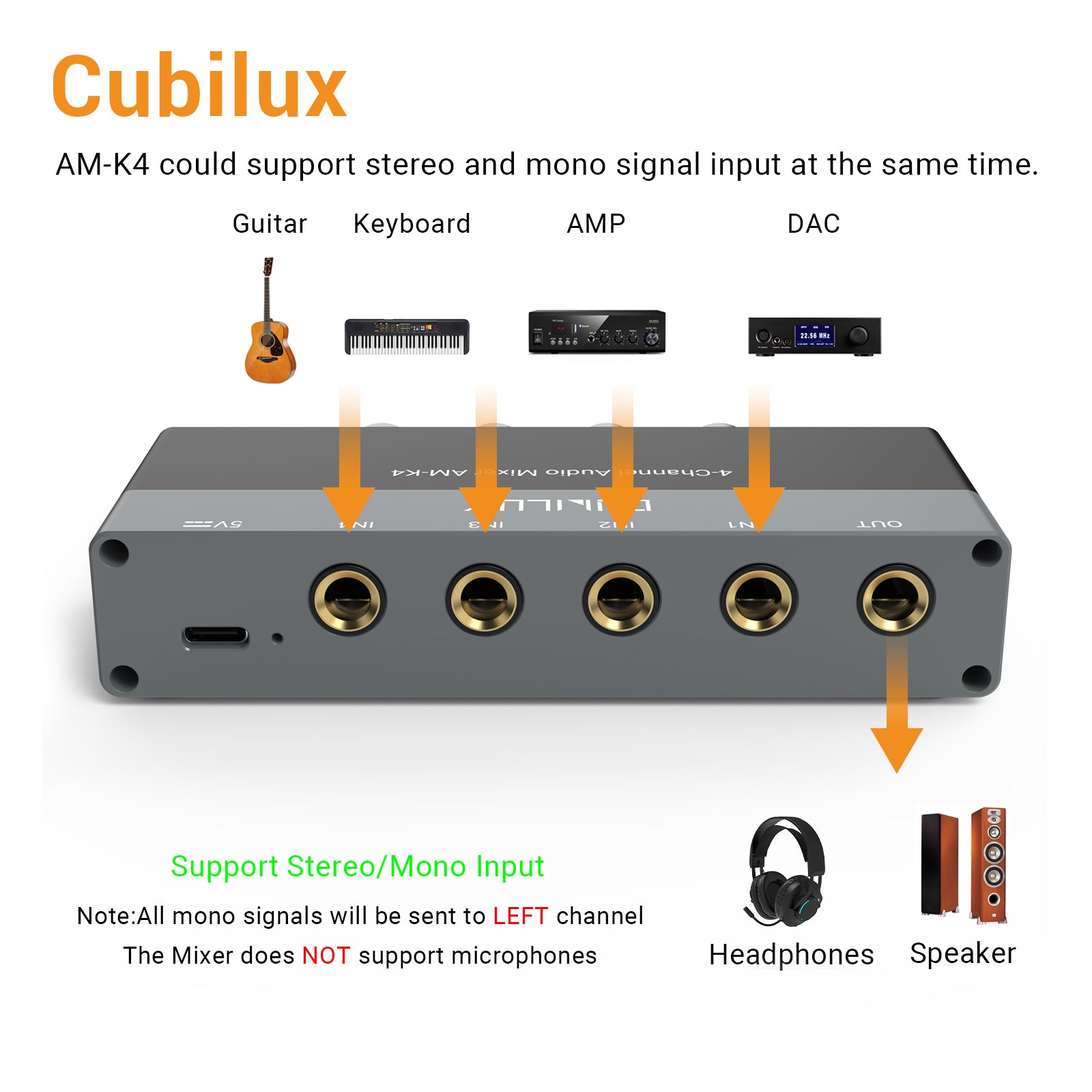

Support Simultaneously Input of Stereo and Mono Signal

The mixer allows you to handle stereo and mono audio sources at the same time. Please note that all mono signals will be sent to the LEFT channel.

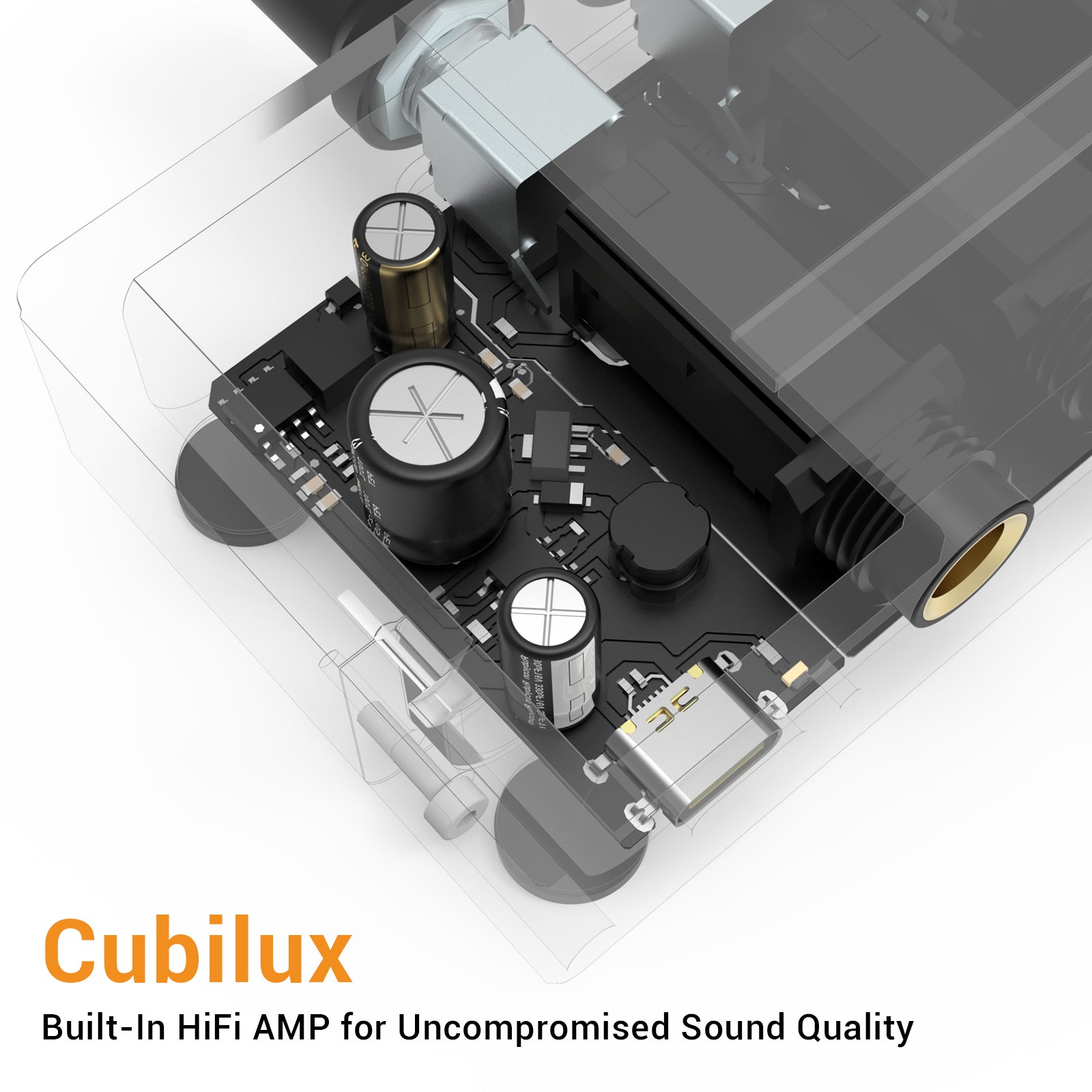

Built-In HiFi AMP

Cubilux AM-K4 has a built-in HiFi grade analog AMP to enhance both input and output audio signal for better sound quality.

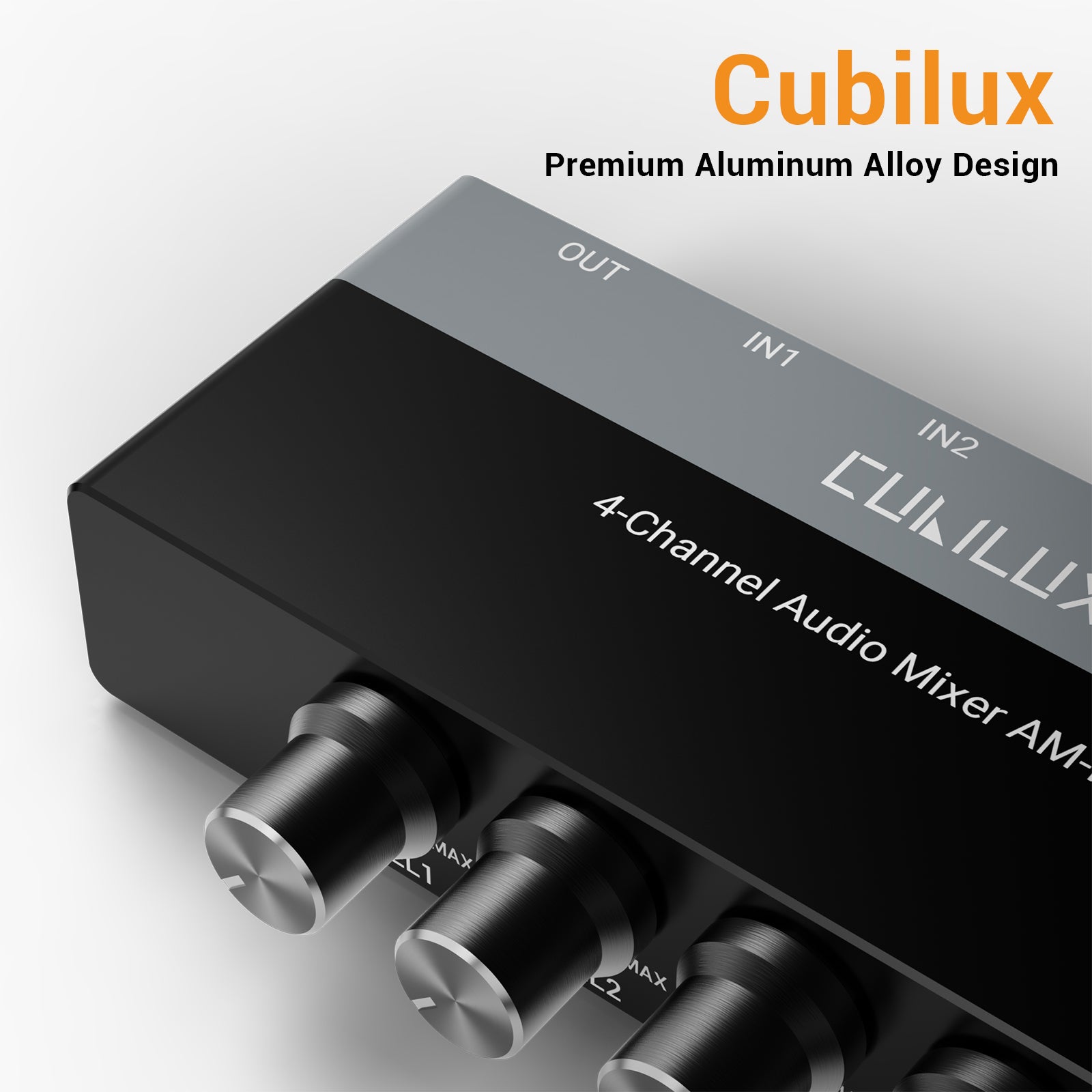

Premium Design


  • Power Input: USB 5V 0.3A(Require minimal 5V 1A phone charger)
  • Maximum Signal Input/Output Power: 10Vrms
  • Dimension: 5 in x 2.5 in x 1 in

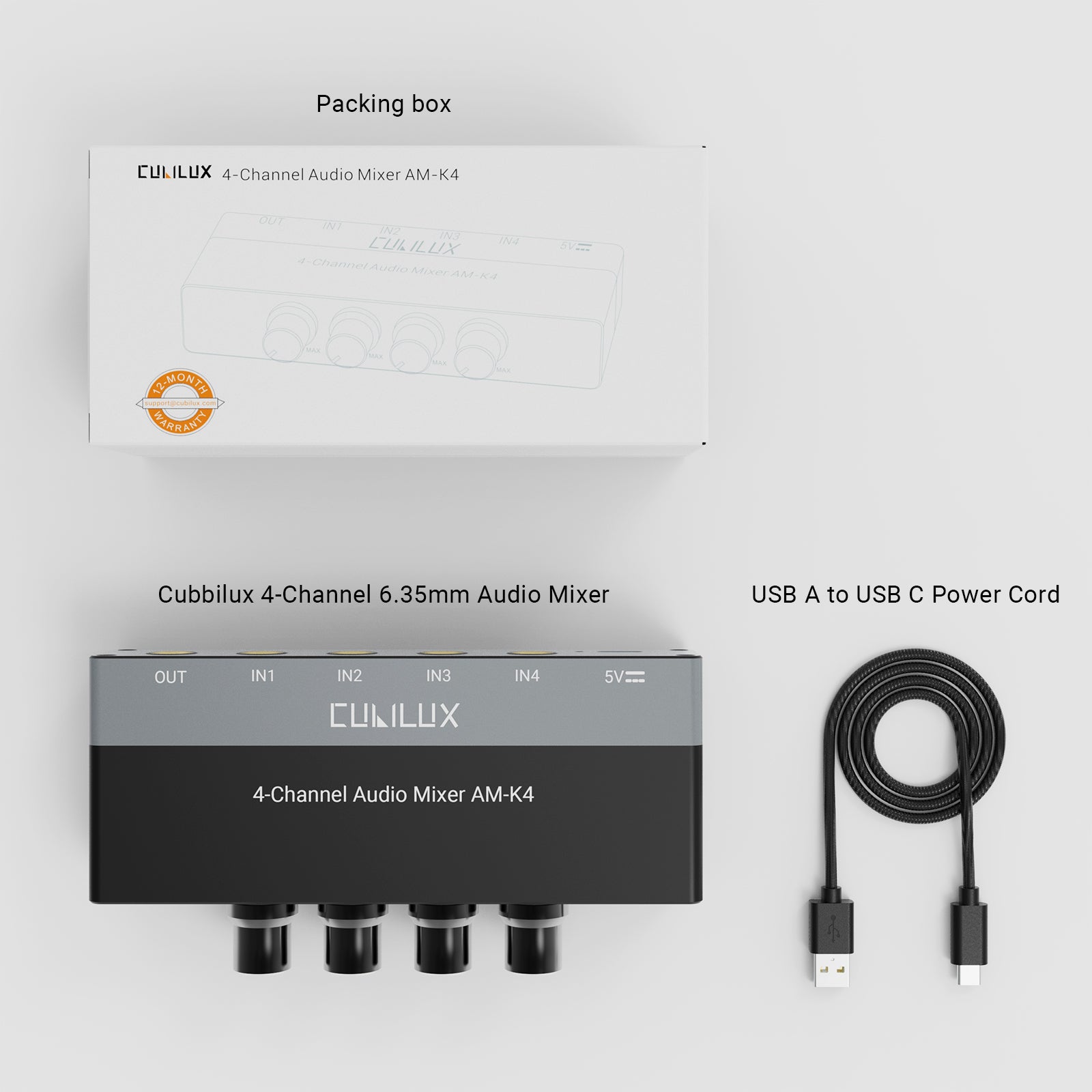

In the Box

  • Cubilux AM-K4 Mixer
  • USB A to USB C Charging Cable (3 Feet)
