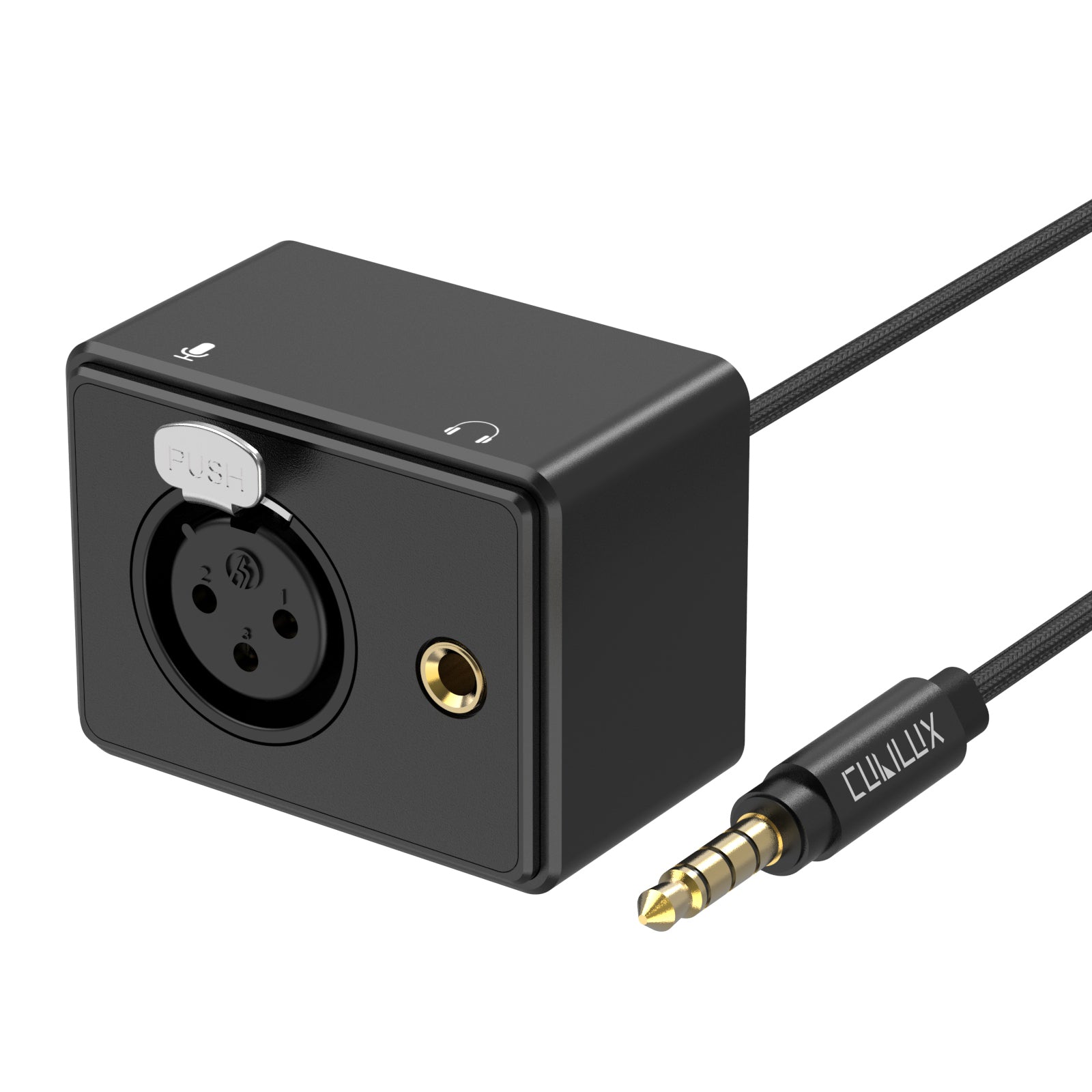

3.5mm TRRS Plug to XLR Lapel Microphone and 3.5mm Headphone Out Splitter

3.5mm TRRS Plug to XLR Lapel Microphone and 3.5mm Headphone Out Splitter

$19.99
$19.99
Sale Sold out

HIGHLIGHT

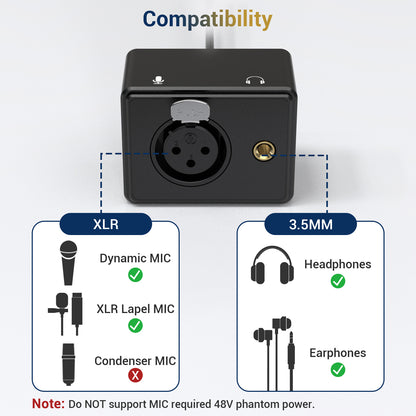

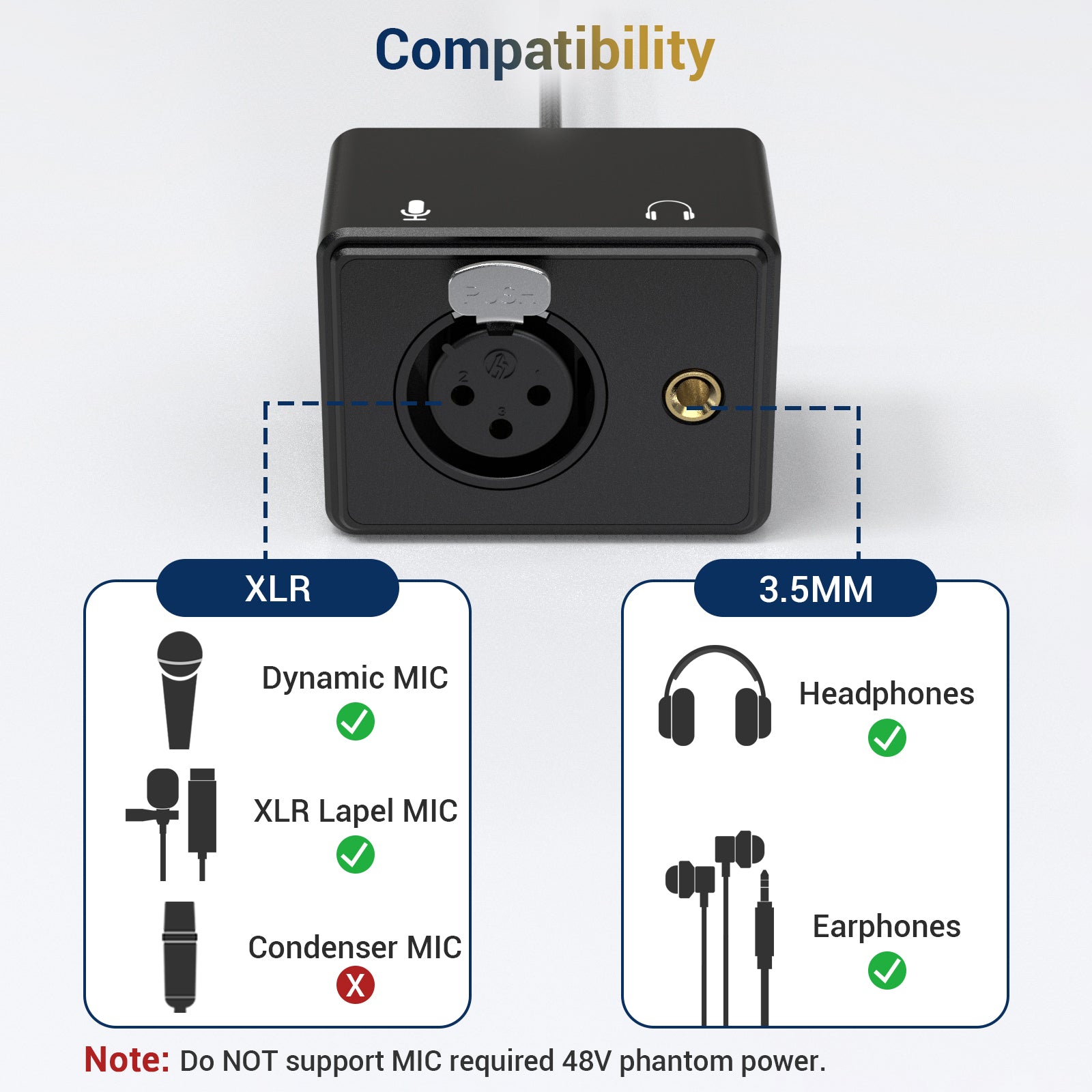

  • [DO NOT Support Microphone that Needs 48V Phantom Power] – The Splitter ONLY supports lapel, lavalier or dynamic microphones, does NOT support microphone that requires 48V phantom power supply.

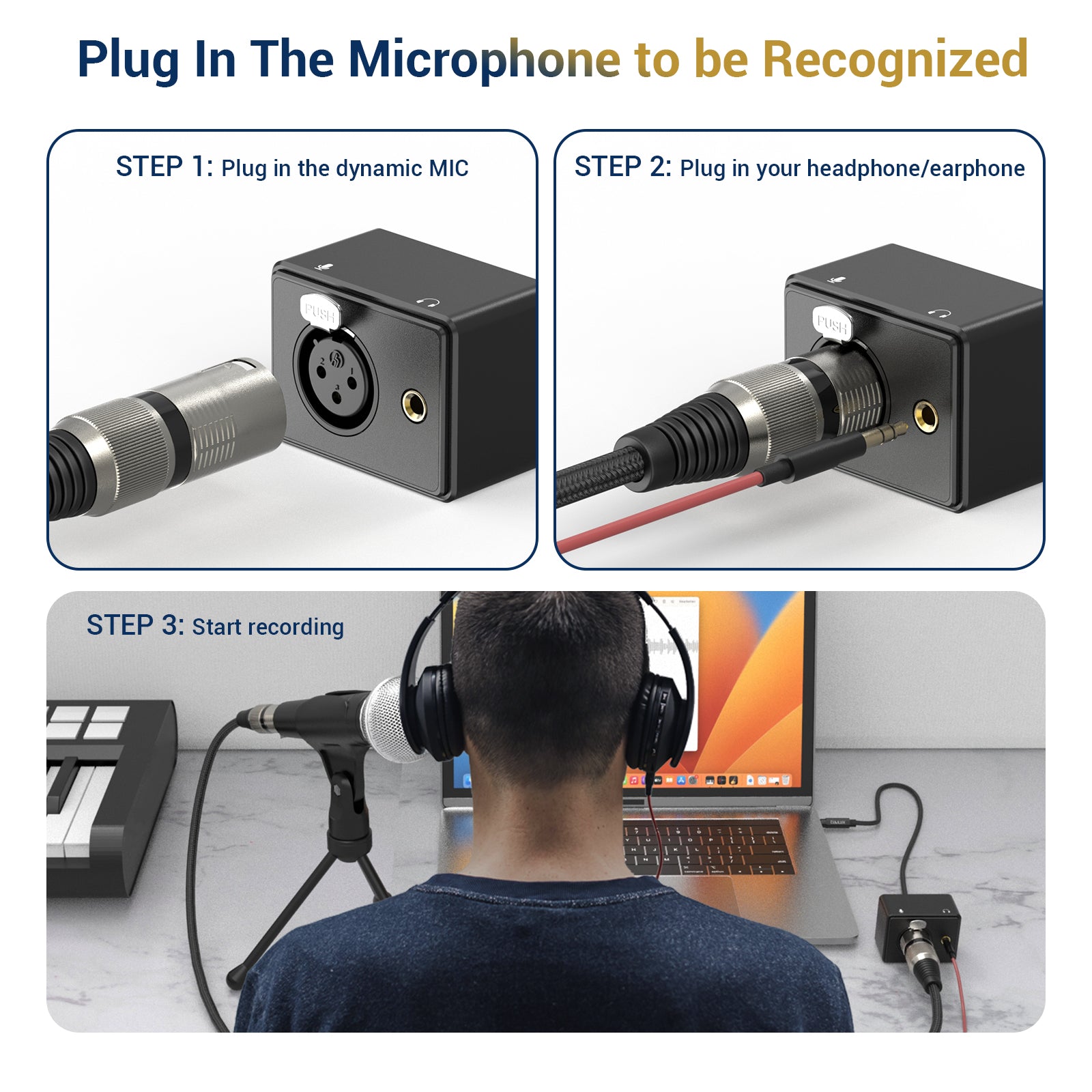

  • [Plug In Microphone to be recognized] – Please note that the splitter will ONLY be recognized after a lapel or dynamic microphone is hooked up.
  • [Connect Lapel XLR Microphone to Your Devices with 3.5mm TRRS Jack] – The Splitter can be used for splitting your phone,tablet or computer’s 3.5mm jack to a XLR microphone interface and a 3.5mm headphone jack for you to playback the sound after you recording it with the microphone.

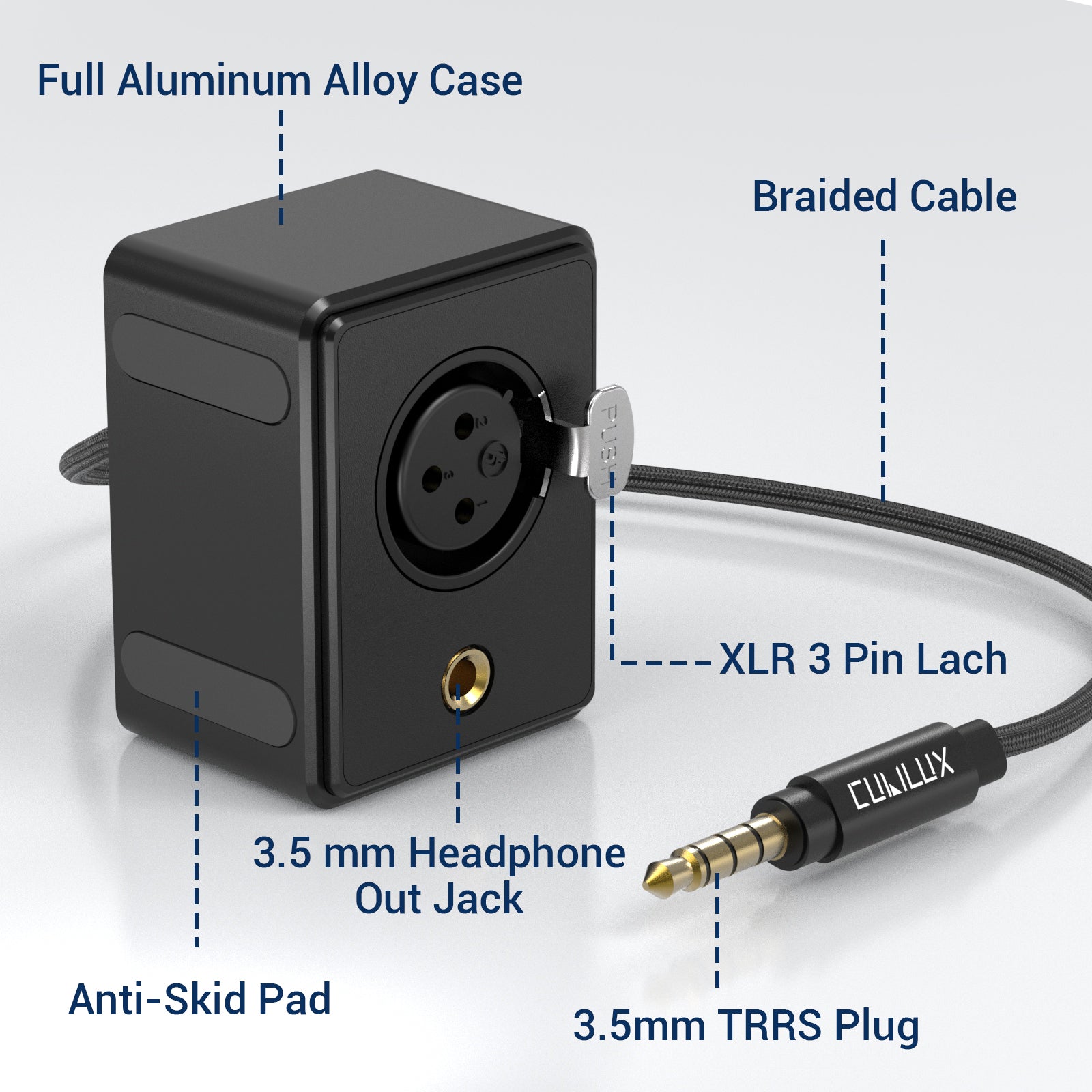

  • [Ultra Compact Design with Full Aluminum Alloy Case] – The splitter has a unique design with a XLR 3 pin laches to lock the microphone cable and the compact size is convenient for you to carry it everywhere.The aluminum alloy case and the braided cable will also boost the durability and lifespan.

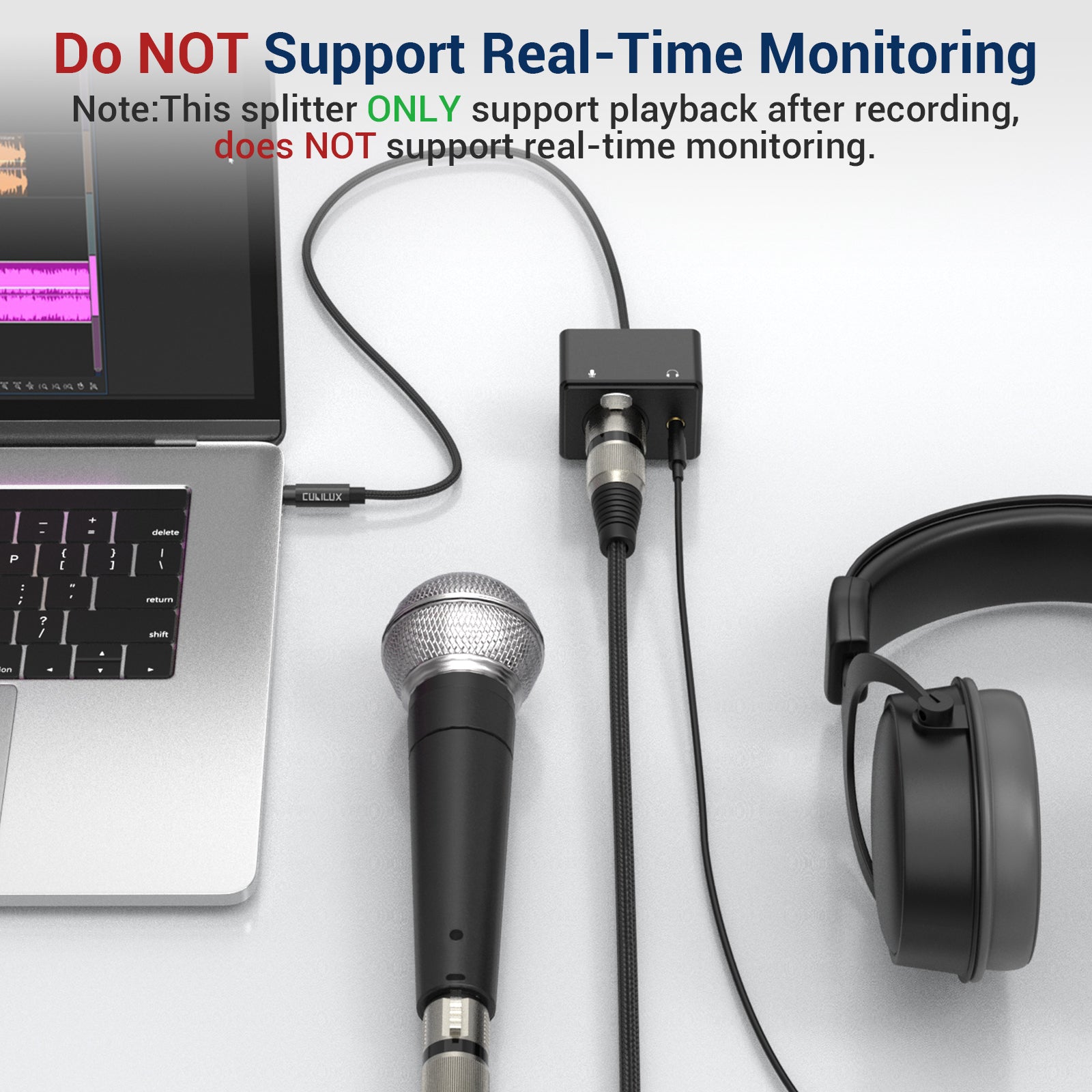

  • [Do NOT Support Real-Time Monitoring] – The Splitter can ONLY be used for playback after recording, NOT for real-time monitoring.

Cubilux 3.5mm to XLR Microphone and 3.5mm Headphone Out Splitter

The Cubilux 3.5mm to XLR Microphone and 3.5mm Headphone Out Splitter is perfect for you to playback recording sound like piano,guitar,vocals after recording.No need for extra setup , just plug and play.

  • Lossless Sound Quality
  • Plug and Play Without extra power supply
  • Special Design for Compact and Convenient Carry
  • Full Aluminum Alloy Housing and Braied Cable

Connection Details

DAC Path:

Sampling Rate: 44.1/48/96KHz, 16/24-bit; 192KHz/16-bit

SNR: >=95dB

THD+N: <0.01%

Full Scale Output Level: 1.0Vrms

ADC Path:

Sampling Rate: 48KHz, 16/24-bit

SNR: >=90dB

THD+N: <0.01%

Playback Sound After Recording

Perfect for checking the sound after recording.

Please Note:

1. The Splitter does NOT support real-time monitoring,ONLY for playback sound after recording.

2. The Splitter does NOT support microphone that required 48v phantom power,ONLY for XLR dynamic microphone or XLR lapel microphone.

3. The splitter can ONLY be recognized when the XLR microphone is pluged in.

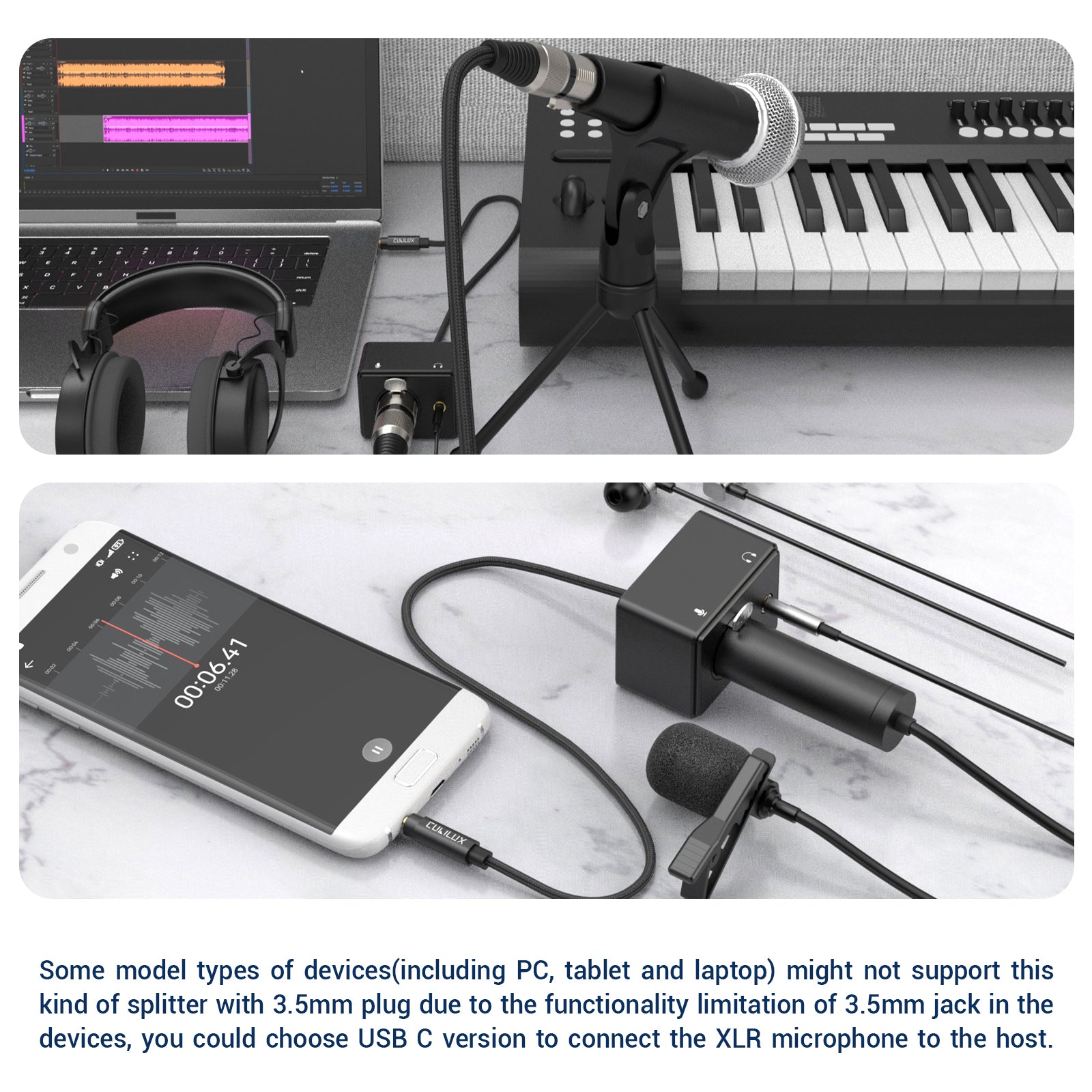

4. Some model types of devices (including PC, tablet and laptop) might not support this kind of splitter with 3.5mm plug due to the functionality limitation of 3.5mm jack in the devices, you could choose USB C version to connect the XLR microphone to the host.
